Xaya Boats · cabin deck
ft. Cabin Cruiser
Compact cabin cruiser with weather protection and the agility of a smaller hull.
Length Overall
8.5 m / 28 ft
Beam
2.70 m / 8.86 ft
Draft (trim down)
0.45 m / 1.48 ft
Draft (trim up)
0.36–0.41 m / 14–16 in
Features

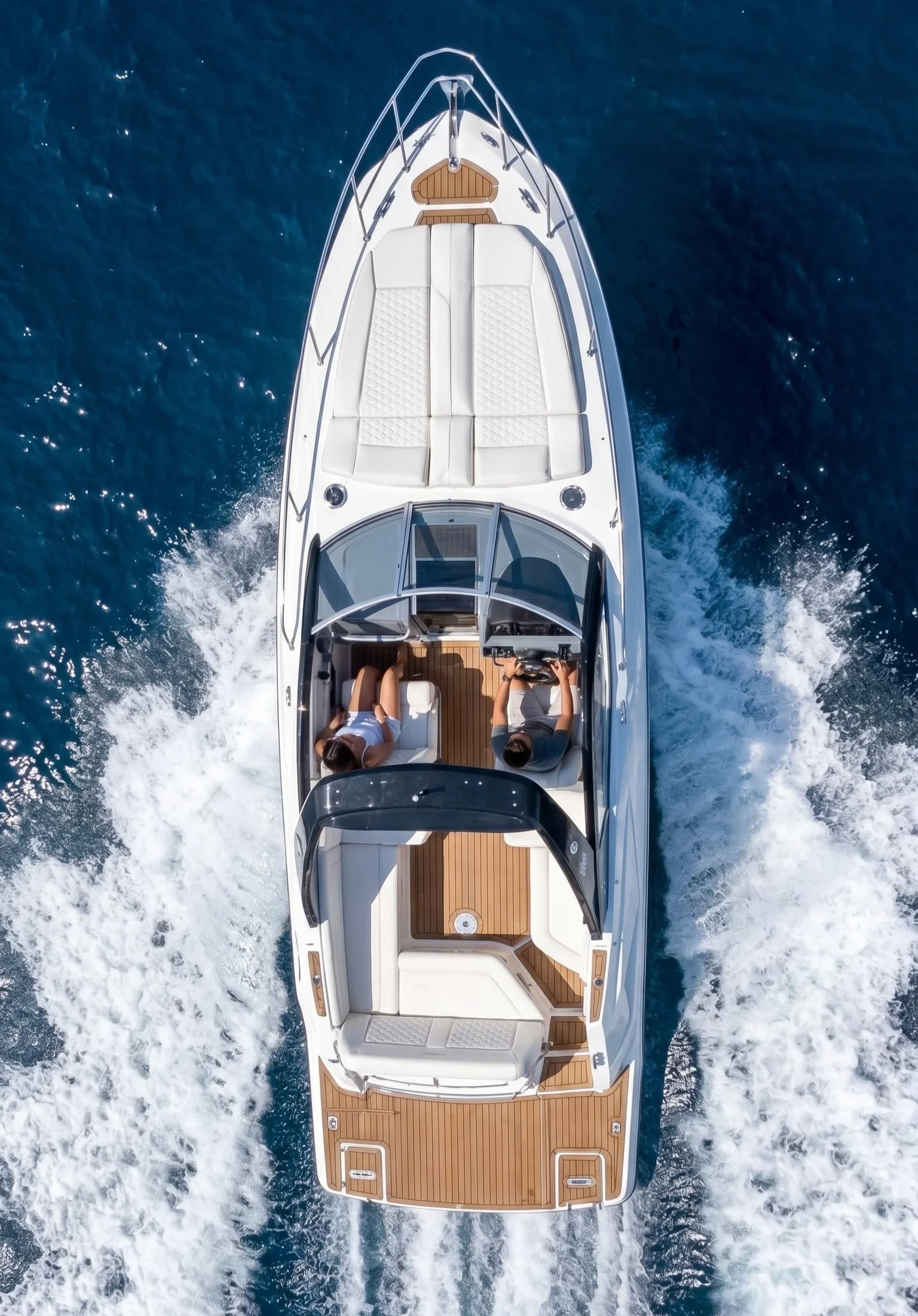

Engineered for the Open Sea
Vacuum-infused fiberglass hull engineered for offshore and coastal performance.
Vacuum-Infused Build
Lower weight, higher structural integrity
Deep-V Hull
Stability at speed, smooth in chop
Outboard Power
Power configurations tailored to each hull
28 ft. Cabin Cruiser · Specifications
Specifications
10 measurements
- Length Overall
- 8.5 m / 28 ft
- Beam
- 2.70 m / 8.86 ft
- Draft (trim down)
- 0.45 m / 1.48 ft
- Draft (trim up)
- 0.36–0.41 m / 14–16 in
- Fuel Capacity
- 564 L / 149 gal
- Water Capacity
- 189 L / 50 gal
- Standard Propulsion
- 500 HP Outboard
- Dry Weight
- 1,500 kg / 3,307 lbs
- Deadrise
- 17°
- CE Capacity
- 10 Persons
* Specifications and dimensions are approximate and subject to change without notice.
Craftsmanship
How a Xaya is built
Every hull is laid up, bonded, and finished by the same small team — built to a standard, not a schedule.
Vacuum Infusion
Hulls and structural components are infused under vacuum, drawing resin evenly through the laminate for a consistent fibre-to-resin ratio, lower weight, and greater strength than hand lay-up.
Composite Construction
Marine-grade GRP throughout the hull, deck, and structure — corrosion-resistant, low-maintenance, and built to hold its integrity for decades at sea.
Deep-V Hull
An offshore-tuned deep-V with an aggressive entry, lifting strakes, and reverse chines — soft through chop, stable at rest, efficient at speed.
Bonded & Fastened
Critical structure is chemically bonded and laminated into the vessel; serviceable hardware is mechanically fastened in marine-grade stainless steel.
Premium Scott Bader resin systems · E-glass woven roving · multiaxial reinforcements · structural composite cores · UV-resistant marine vinyl over high-density foam.
Certified & supported
- Certification
- CE Recreational Craft Directive
- Classification
- TASNEEF · GCC Code, where applicable
- Hull warranty
- 5 years, structural
- Workmanship
- 1 year, parts & installed systems
- Service network
- GCC · Europe · Mediterranean

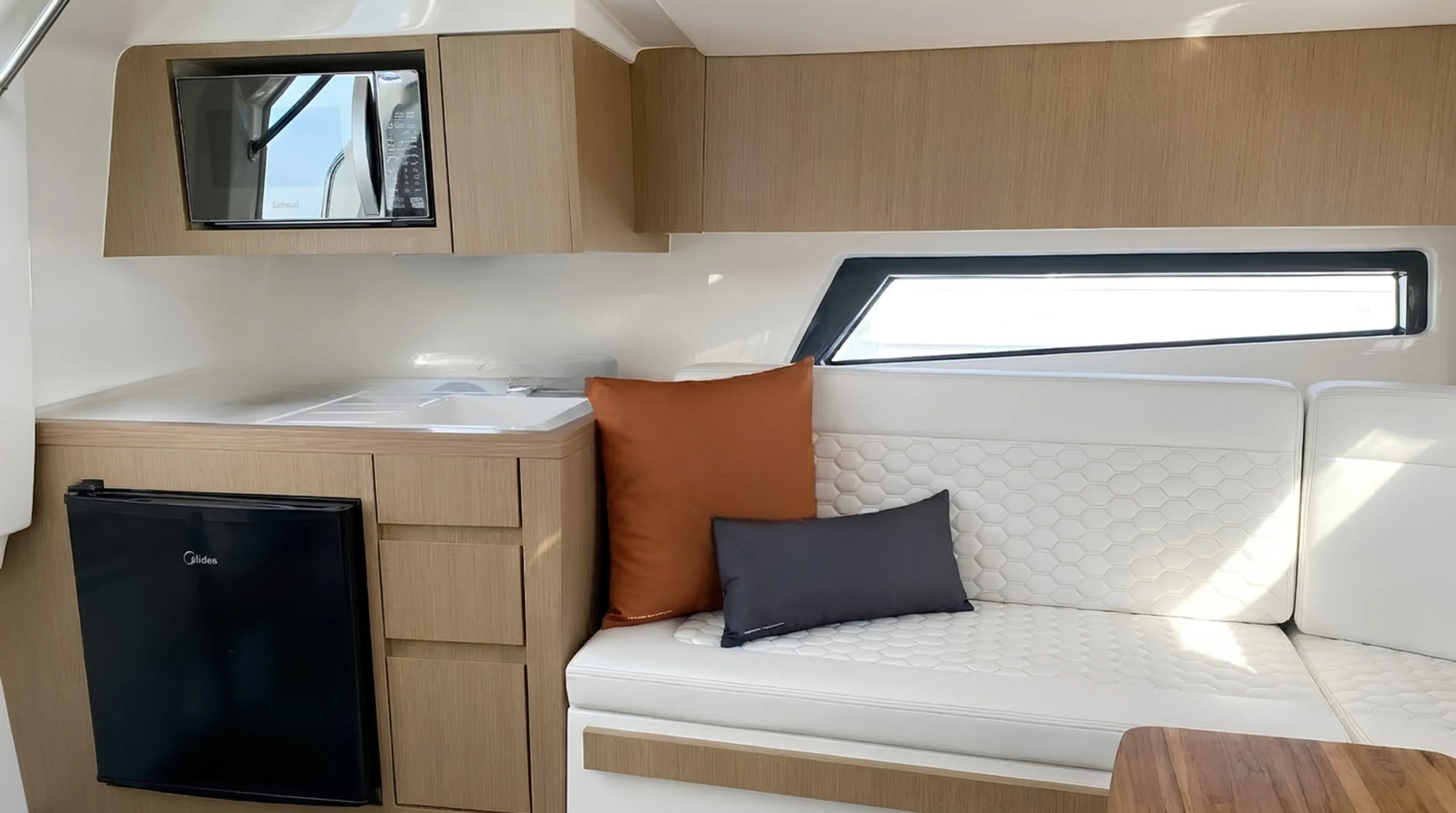

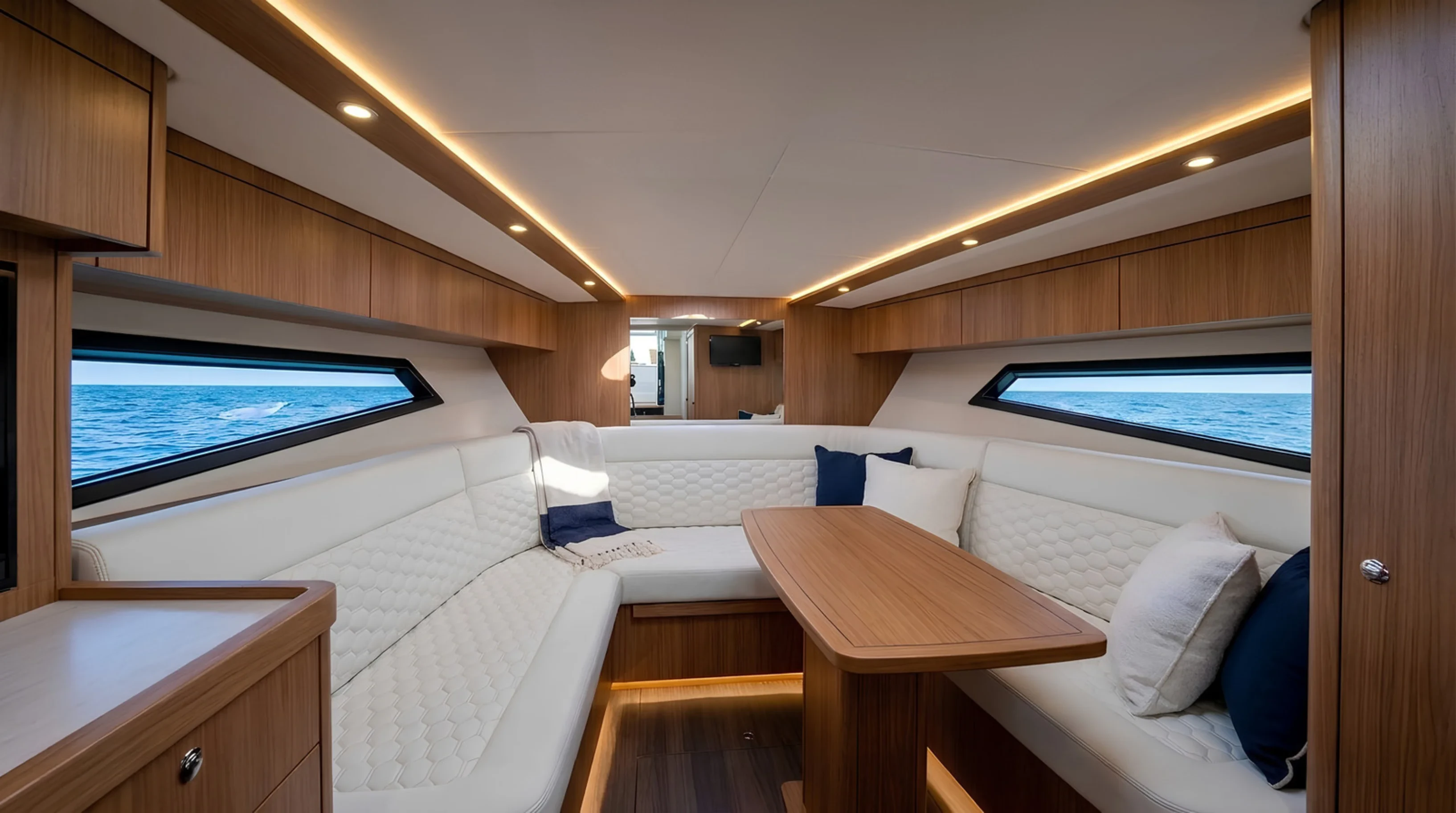

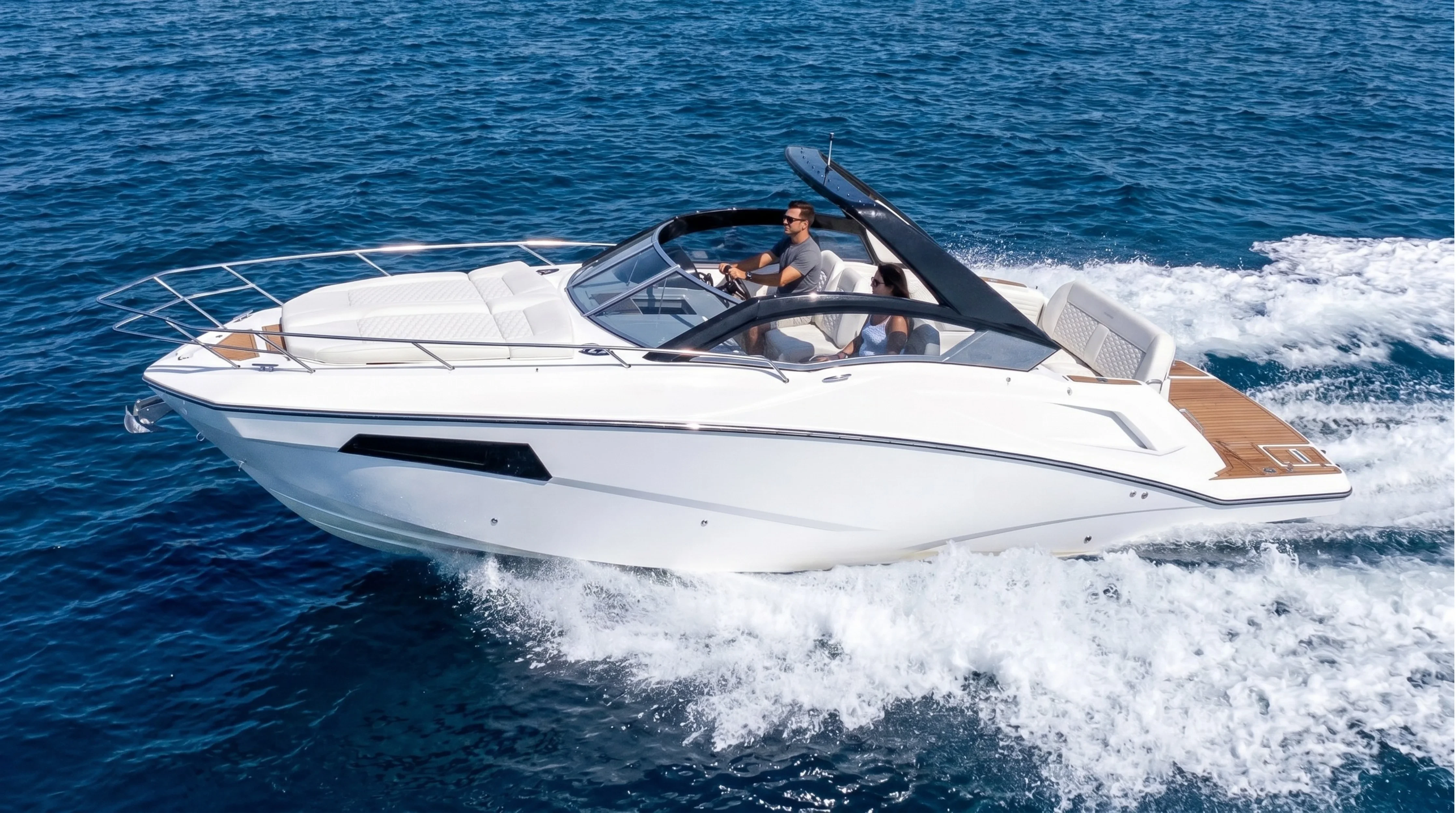

Gallery
Gallery
3 images
Inquire about this hull
Reach the Xaya atelier in Abu Dhabi for a private viewing or to commission a build.
